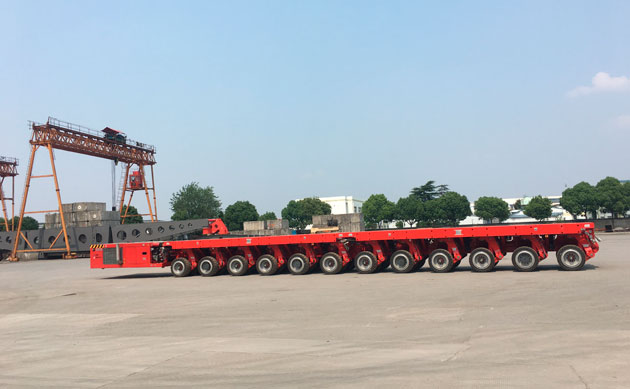

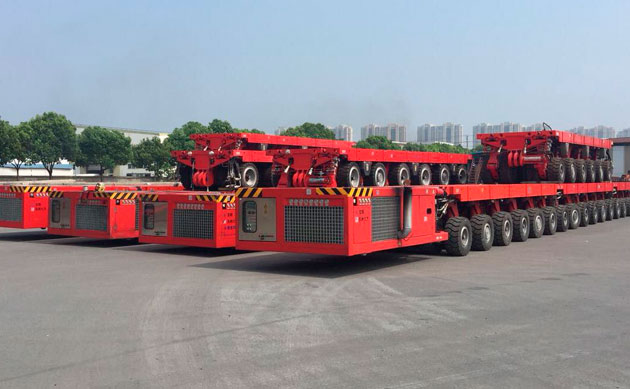

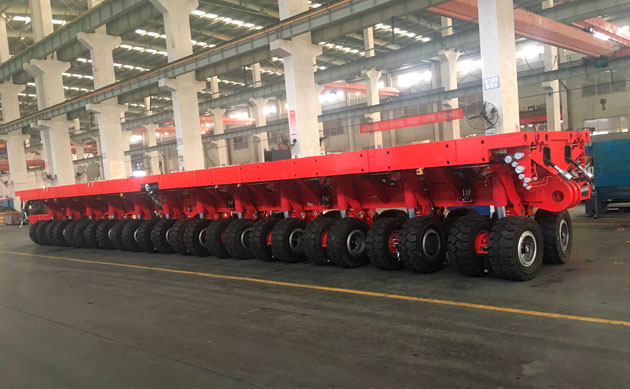

As the combination product of Self Propelled Trailer and modular trailer, SPMT is equipped with a power system and changes each suspension to independent suspension on the basis of the structure of modular trailer. SPMT (self-propelled modular transporter) standardizes and modularizes the structure shape, and continuously splices the axle according to the quality of cargo. Spmts integrate computer and micro-electric technology, hydraulic technology, and wireless communication technology to realize wireless intelligent operation. Because of its compact structure and standardized module assembly, it can be mechanically spliced and flexibly spliced. In theory, SPMT can be spliced to a bearing capacity of 10 million tons.

In practical application, the largest capacity of SPMT model case has exceeded 10000 tons. With the continuous promotion of the idea of self propelled modular transporter manufacturers of exchanging space for time for mega equipment, mega equipment is assembled and welded in the factory, which not only ensures the project quality, but also enables multiple parts to work at the same time, saving time, and the SPMT is the transportation basis of this assembly mode, such as SPMT transport for chemical plants. Therefore, the equipment has a good application prospect in the overall handling of super mega components such as offshore platforms, substations, shipbuilding, mega engineering buildings, and so on. Because SPMT transports super-large objects, its speed design is generally very slow, and the basic SPMT speed is controlled within 5km/h.

Specifications Of SPMT

Speed5 km/h3 km/h1 km/h0.5 km/h
Payload (Net load)104,000 kg112,000 kg*)128,000 kg*)144,000 kg
Dead weight (approx.)16,000 kg16,000 kg16,000 kg16,000 kg
Max. rated total weight120,000 kg128,000 kg144,000 kg160,000 kg
Rated axle load/line30,000 kg32,000 kg*) 36,000 kg*) 40,000 kg
Loading platform size, L x Wapprox. 5,600mmx2,430mm
Loading platform height (Initial position)approx. 1,150mm
Loading platform height(Driving position)approx. 1,500mm
Lift / compensation strokeapprox. 700mm (±350mm)
Wheel carrier No. (Total)8 sets
Wheel carrier No. (Drive)2 sets
Wheel carrier No. (Brake)4 sets
Wheel carrier No. (Running)2  sets
Traction force @ 400barapprox. 2x80 kN=160kN
Brake forceapprox. 4x55 kN=220kN
Permitted Max driving speedapprox. 11.5km/h
Steering angleRack and pinion, approx.+130°/ -100°
Working Temperatureapprox.-20°C〜+40°C
Permitted platform bending momentapprox.+7700kNm/-6300kNm

Application Of SPMT

Application Of SPMT

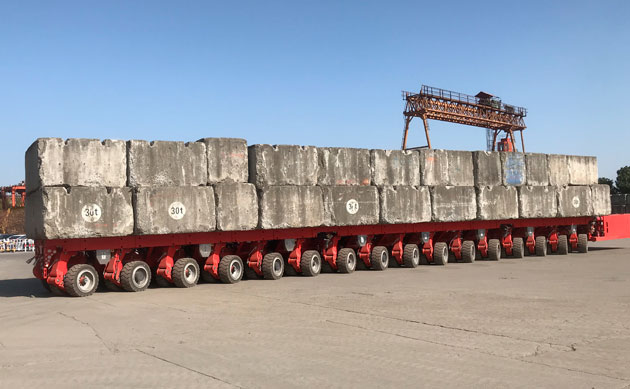

Self Propelled Modular Transporters,(Hereinafter referred to as SPMT, through Individual or combination modes, provide the reliable transport solution for oversize, non-detachable, overlength or overweight superstructure cargoes, such as offshore oil platform, module chemical plant, shipbuilding, nuclear and the transportation of chemical tanks. It is widely used in the fields of Oil&Gas, Electricity, Metallurgy, Chemical industry, Construction, Shipbuilding, Marine engineering, etc.

The self-propelled modular transporter adopts a narrow body modular design, and the width of a single module is 2430mm; The single axle load can reach 40 tons, especially suitable for concentrated load transportation; SPMT module transport has the function of multi vehicle merging, which can realize the soft and hard connection of 1000 axle modules at most, and the maximum load capacity can reach nearly 30000 tons; It has a variety of steering modes such as straight, zigzag, oblique, central rotation, horizontal, front swing, rear swing and so on. The steering modes of a single module and multi modules in SPMT company are the same.
